Device setup
- Connect to WiFi (using details on rear of device) or Ethernet cable
- Browse to router set-up: http://192.168.2.1/
- Login with

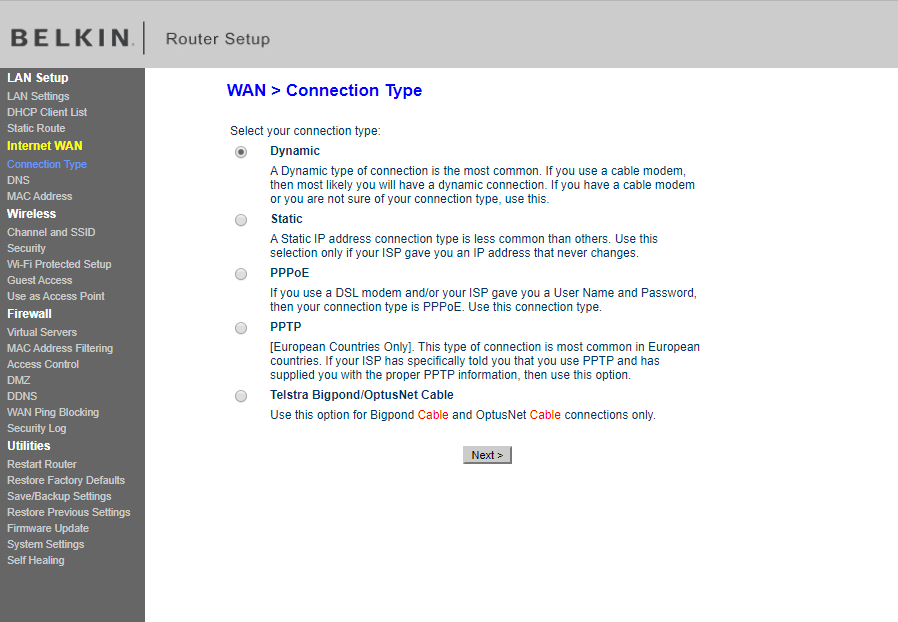

/ admin (or details on rear of device) - In Internet WAN settings, set as “Dynamic”:
This is a snippet of config and only an example, please expand/amend to suit your network requirements:
conf t
...
interface fa0/0
description Tibus
ip address dhcp
ip nat outside
interface fa0/1
description LAN
ip nat inside
ip address 192.168.1.1 255.255.255.0
ip route 0.0.0.0 0.0.0.0 fa0/0
access-list 10 permit 192.168.1.0 0.0.0.255
ip nat inside source list 10 interface fa0/0 overload
- Connect to WiFi (using details on rear of device) or Ethernet cable
- Browse to router set-up: http://192.168.1.1/
- Login with admin / password (or details on rear of device)

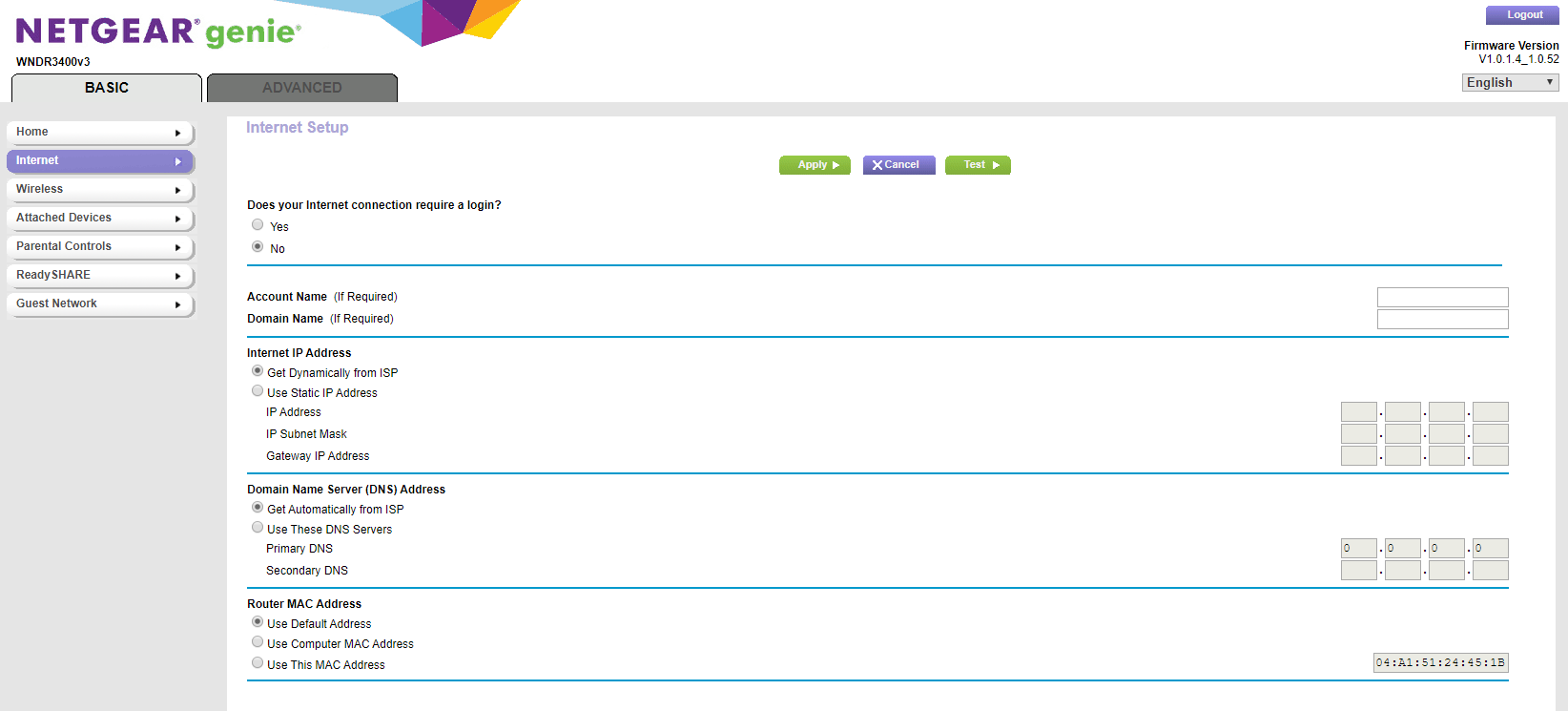

- In Internet/Basic settings, set as follows:
- Connect to WiFi (using details on rear of device) or Ethernet cable
- Browse to router set-up: http://192.168.0.1/
- Login with admin / admin (or details on rear of device)

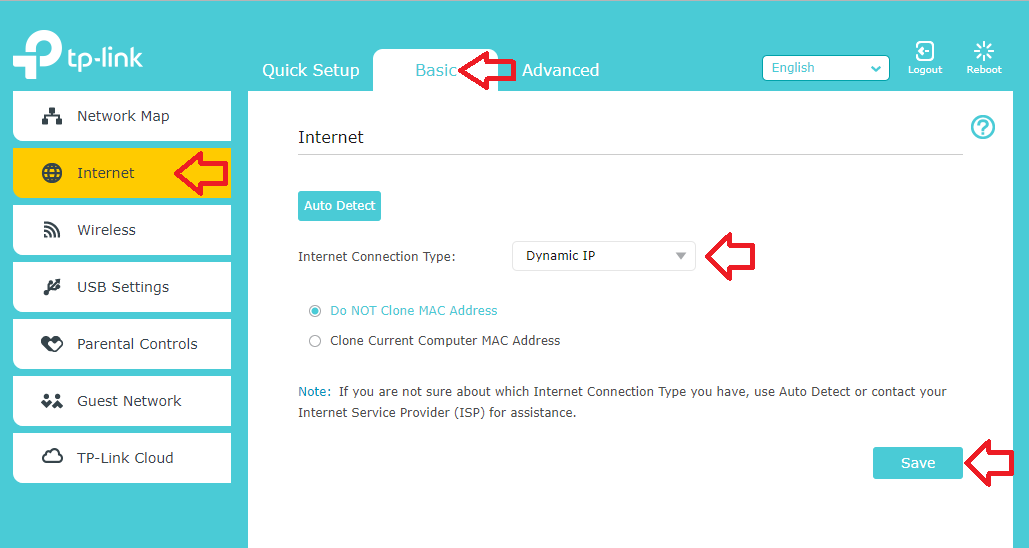

- Set Internet connection to Dynamic IP:
